nVisual告警系统对接示例

下载
1.获取nVisual系统token

接口路径:ip:port/wapi/v1/authenticate

  • java HttpClient发送请求代码示例
java 复制代码
public String getNvisualToken(String username, String password){
        //获取token
        String token = "";
        Map<String, String> map = new HashMap<String, String>();
        map.put("username",username);
        map.put("password",password);
        String jsonString = JSON.toJSONString(map);
        try {
            String responseToken = HttpUtil.postJSON(nvisualApiConfig.getNvisualUrl()+"/wapi/v1/authenticate",jsonString);
            Map responseTokenMap = JSONObject.parseObject(responseToken,Map.class);
            if("200".equals(responseTokenMap.get("code").toString())){
                Map<String, Object> data = (Map<String, Object>)responseTokenMap.get("data");
                token = (String) data.get("access_token");
            }
        } catch (Exception e) {
            token = "";
        }
        return token;

}

public static String postJSON(String url,String paramjson){
        HttpPost post = new HttpPost(url);
        HttpClient httpClient = HttpClientBuilder.create().build();
        try {
            StringEntity stringEntity = new StringEntity(paramjson, ContentType.APPLICATION_JSON);
            post.setEntity(stringEntity);
            HttpResponse response = httpClient.execute(post);
            if(response.getStatusLine().getStatusCode()==200){
                //获取响应的内容对象
                HttpEntity httpEntity = response.getEntity();
                //转换结果位字符串
                return EntityUtils.toString(httpEntity);
            }
        } catch (IOException e) {
            e.printStackTrace();
        }
        return  null;

}

public static String postJSON(String url,String paramjson,String token){
        HttpPost post = new HttpPost(url);
        HttpClient httpClient = HttpClientBuilder.create().build();
        try {
            StringEntity stringEntity = new StringEntity(paramjson, ContentType.APPLICATION_JSON);
            post.setEntity(stringEntity);
            post.addHeader("Authorization", token);
            // 传输的类型
            post.addHeader("Content-Type", "application/json");
            HttpResponse response = httpClient.execute(post);
            if(response.getStatusLine().getStatusCode()==200){
                //获取响应的内容对象
                HttpEntity httpEntity = response.getEntity();
                //转换结果位字符串
                return EntityUtils.toString(httpEntity);
            }
        } catch (IOException e) {
            e.printStackTrace();
        }
        return  null;

}

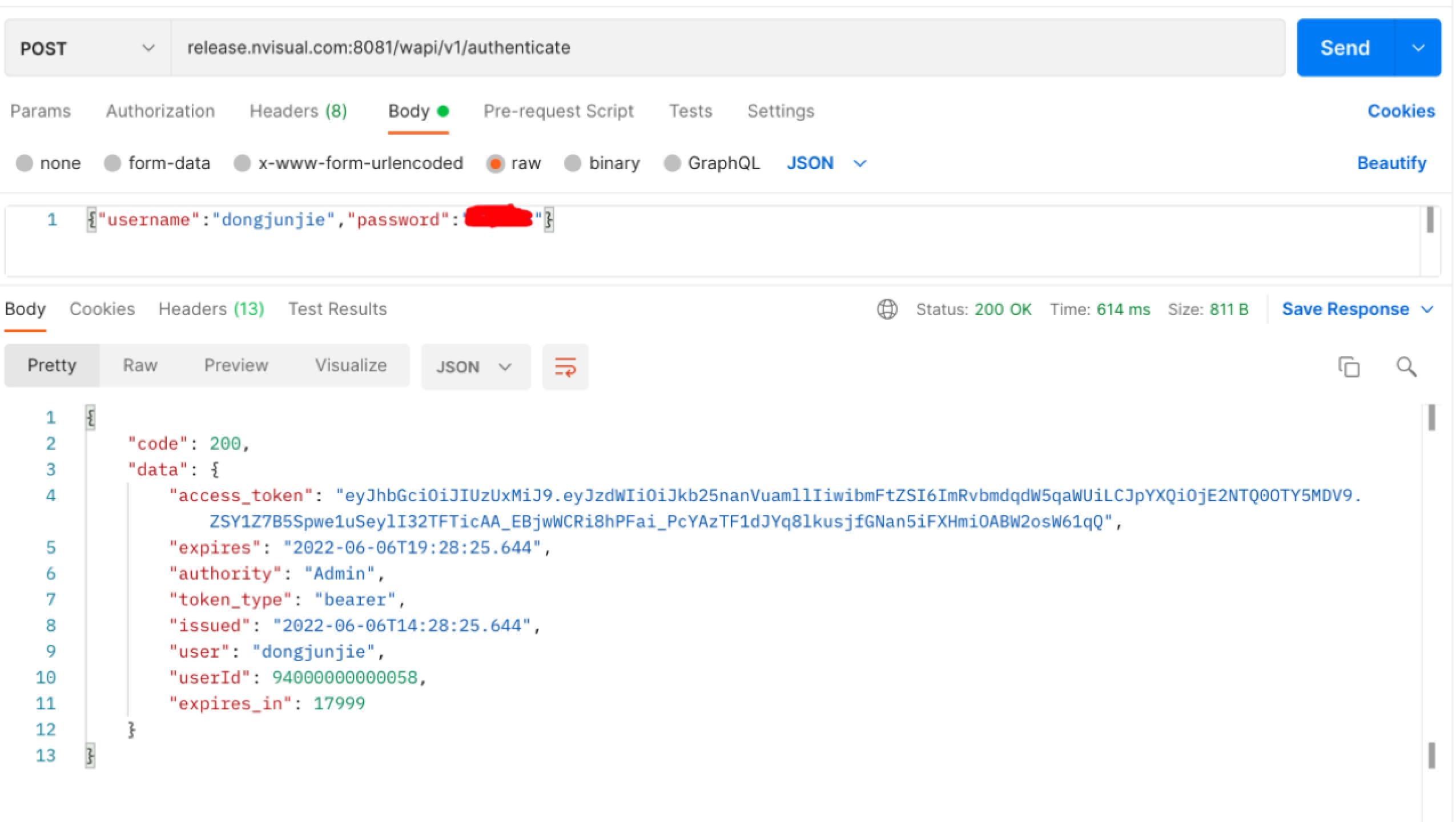

  • Postman示例
2. 定位nVisual中告警对象ID(通过字段名称和字段值获取nVisual对象ID)

接口路径:ip:port/wapi/v1/node_properties/get_node_id_by_name_and_value

  • java示例
java 复制代码
//入参body
  Map<String, Object> npvNameAndValueMap = new HashMap<>();
  npvNameAndValueMap.put("name","告警源");//字段名
  npvNameAndValueMap.put("value",resource);//字段值
  List<Long> nvisualObjectIdByNameAndValue = getNvisualObjectIdByNameAndValue(npvNameAndValueMap, token);

public List<Long> getNvisualObjectIdByNameAndValue(Map<String, Object> map,String token){
        String jsonString = JSON.toJSONString(map);
        String json = HttpUtil.postJSON(nvisualApiConfig.getNvisualUrl() + "/wapi/v1/node_properties/get_node_id_by_name_and_value", jsonString, "Bearer "+token);
        List<Long> list = JSONArray.parseArray(json, Long.class);
        return list;

}
  • api文档

    接口描述:通过传入字段名称和字段值,获取nVisual告警对象id。

    URL地址:http://ip:port /wapi/v1/node_properties/get_node_id_by_name_and_value

    访问方法::Post

    请求参数:

    Body参数

    参数名 示例值 必填 说明
    name 告警源 字段名称
    value 127.0.0.1-1-1 字段值

    响应示例:

    json 复制代码
    //返回值可能为多个
    [24000000001243]
3. 推送告警信息到nVisual系统

接口路径:ip:port/wapi/v1/notice

  • api文档

    接口描述:通过传入消息标题、内容、用户id、消息状态、消息优先级、消息备注,增加消息告警。

    URL地址:http://ip:port /wapi/v1/notice

    访问方法::Post

    请求参数:

    Body参数

    参数名 类型 示例值 必填 说明
    title String 端口告警 通知标题
    content String 端口光功率告警 通知内容,optCableEvent不为空时content可为空,系统自动生成消息内容。
    userId Long 94000000000058 处理人用户id与用户名选其一
    username String fe 处理人用户名与用户id选其一
    messageStatus Boolean false 消息是否恢复,发生告警消息时为false,未恢复,告警消失时为true,告警恢复。不填时默认为false,发生告警消息。
    priority String 严重 消息优先级有:灾难、严重、一般严重、告警、信息、未分类等六个等级。如果填入的值不在六个等级之中,查询归类时归类为“未分类”。
    notes String 告警测试 消息备注
    objectId Long 23416004312147 optCableEvent参数二选一 若已知nVisual告警对象ID时,直接传入id,如果不知id时,通过传入optCableEvent参数即可,nVisual自行查询
    optCableEvent Object { "port":"1.1.1.3-1-1", "eventType":"OTHER", "eventSign":50} objectId参数二选一 port:ip-插槽名称-端口名称eventType:事件类型,可为空eventSign:告警距离,为空时认定为端口告警,不为空时线缆告警。

    响应示例:

    json 复制代码
    {
      "code": 200,
      "data": {
          "id": 53000000000391,
          "title": "123",
          "content": "456",
          "userId": 94000000000058,
          "messageStatus": true,
          "createTime": "2023-02-09T08:50:36.440+0000",
          "lastOprTime": "2023-02-09T08:50:36.440+0000",
          "jumpUrl": null,
          "noticePop": false,
          "priority": “高”,
          "notes": “工单测试”
        },
      "message": "success"
    }
4. 修改nVisual中告警状态

接口路径:ip:port/wapi/v1/notice/id/{noticeId}

  • api文档

    接口描述:传入消息id,修改消息状态。

    URL地址:http://ip:port /wapi/v1/notice/id/{noticeId}

    访问方法::Put

    请求参数:

    Path参数

    参数名 类型 示例值 必填 说明
    noticeId Long 53000000000391 消息id

    Body参数

    参数名 类型 示例值 必填 说明
    messageStatus Boolean true 消息状态

    响应示例:

    json 复制代码
    {
      "code": 200,
      "data": null,
      "message": "success"
    }
5. 删除nVisual中告警

接口路径:ip:port/wapi/v1/notice/delete

  • api文档

    接口描述:传入消息id,批量删除消息。

    URL地址:http://ip:port /wapi/v1/notice/delete

    访问方法::Post

    请求参数:

    Body参数

    参数名 类型 示例值 必填 说明
    ids Long[] [5300000000001] 消息id

    响应示例:

    json 复制代码
    {
      "code": 200
    }
