30.LLDP模块

下载

LLDP模块

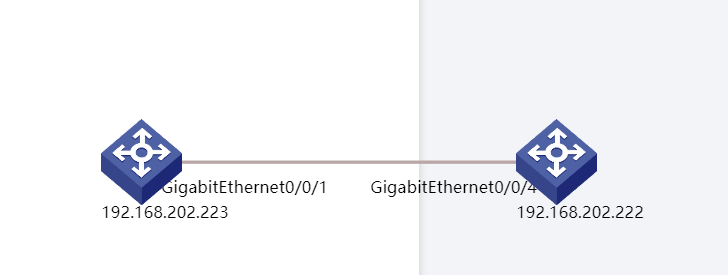

LLDP创建拓扑

  • 接口描述：传入投影节点id，LLDP监测模块根据节点ip属性值，使用LLDP监测程序创建拓扑关系图。

  • URL地址：http://ip:port /wapi/v1/LLDP/graphView/visNodeId/{visNodeId}

  • 访问方法:：Post

  • 请求参数：

    Path参数

参数名 类型 示例值 必填 说明
visNodeId Long 2761551 是 投影节点id
  • 响应示例：

{

"code": "200",

"data": {

"nodes": [

{

"id": 2781663,

"nodeId": 24000000054973,

"diagramId": 24000000039637,

"x": 1083.4181756346845,

"y": 110.71699402766347,

"z": null,

"width": 49.45598417408507,

"height": 52.42334322453017,

"imageOverride": null,

"keepAspectRatio": false,

"angle": 0,

"canMove": true,

"canResize": true,

"canRotate": true,

"canDelete": true,

"zOrder": 0,

"displayed": true,

"typeId": 26000000018199,

"name": " huawei222",

"parentId": 24000000039637,

"slotId": null,

"masterId": null,

"route": "24000000000001/24000000012661/24000000039637/24000000054973",

"mapZoom": 4.0,

"nodeTypeName": "Core switch",

"nodeTypeImage": "Core switch.png",

"nodeTypeTypeGroup": 1,

"nodeTypeHeight": 0.0,

"nodeTypeWidth": 0.0,

"mountedNodesData": null,

"shapes": null,

"diagramSublink": null,

"diagramSublinks": null,

"unitsHeight": null,

"hasEmbeddedFile": false,

"clusterSize": null,

"table": [

"型号:Huawei AC6003",

"系统描述: S5700-28C-HI \r\nHuawei Versatile Routing Platform Software \r\n VRP (R) software,Version 3.30 (S5700 V200R001C00) \r\n Copyright (C) 2007 Huawei Technologies Co., Ltd.",

"生命周期:"

],

"depth": 0.0,

"master": true,

"blocked": false,

"cluster": null

}

],

"links": [

{

"linkId": 25000000124880,

"typeId": 27000000000151,

"name": "从：GigabitEthernet0/0/1 到：GigabitEthernet0/0/4",

"fromNode": 24000000049061,

"toNode": 24000000054973,

"fromRoute": "24000000000001/24000000012661/24000000039637/24000000049061",

"toRoute": "24000000000001/24000000012661/24000000039637/24000000054973",

"visLinkId": 223646,

"diagramId": 24000000039637,

"routepath": null,

"fromAnchorPointX": 0.5,

"fromAnchorPointY": 0.5,

"toAnchorPointX": 0.5,

"toAnchorPointY": 0.5,

"canDelete": true,

"canMove": true,

"zOrder": -1,

"displayed": true,

"color": "#b9a6a6",

"thickness": 2.0,

"linkStyle": 0,

"htLinkType": "{\"linkType\":null,\"startArrowHead\":null,\"endArrowHead\":null,\"autoArrangement\":true}",

"displayedVisLinkFields2": null,

"table": [

"名称:从：GigabitEthernet0/0/1 到：GigabitEthernet0/0/4"

]

}

]

},

"message": "success"

}

创建限制层级拓扑

  • 接口描述：传入投影节点id和最多展开拓扑层级，LLDP监测模块根据节点ip属性值，使用LLDP监测程序创建拓扑关系图，最高展开的级数按照传参决定。

  • URL地址：http://ip:port/wapi/v1/LLDP/graphView/visNodeId/{visNodeId}/step/{step}

  • 访问方法:：Post

  • 请求参数：

    Path参数

参数名 类型 示例值 必填 说明
visNodeId Long 2761551 是 投影节点id
Step integer 1 是 最高展开层级
  • 响应示例：

{

"code": "200",

"data": {

"nodes": [

{

"id": 2781663,

"nodeId": 24000000054973,

"diagramId": 24000000039637,

"x": 1083.4181756346845,

"y": 110.71699402766347,

"z": null,

"width": 49.45598417408507,

"height": 52.42334322453017,

"imageOverride": null,

"keepAspectRatio": false,

"angle": 0,

"canMove": true,

"canResize": true,

"canRotate": true,

"canDelete": true,

"zOrder": 0,

"displayed": true,

"typeId": 26000000018199,

"name": " huawei222",

"parentId": 24000000039637,

"slotId": null,

"masterId": null,

"route": "24000000000001/24000000012661/24000000039637/24000000054973",

"mapZoom": 4.0,

"nodeTypeName": "Core switch",

"nodeTypeImage": "Core switch.png",

"nodeTypeTypeGroup": 1,

"nodeTypeHeight": 0.0,

"nodeTypeWidth": 0.0,

"mountedNodesData": null,

"shapes": null,

"diagramSublink": null,

"diagramSublinks": null,

"unitsHeight": null,

"hasEmbeddedFile": false,

"clusterSize": null,

"table": [

"型号:Huawei AC6003",

"系统描述: S5700-28C-HI \r\nHuawei Versatile Routing Platform Software \r\n VRP (R) software,Version 3.30 (S5700 V200R001C00) \r\n Copyright (C) 2007 Huawei Technologies Co., Ltd.",

"生命周期:"

],

"depth": 0.0,

"master": true,

"blocked": false,

"cluster": null

}

],

"links": [

{

"linkId": 25000000124880,

"typeId": 27000000000151,

"name": "从：GigabitEthernet0/0/1 到：GigabitEthernet0/0/4",

"fromNode": 24000000049061,

"toNode": 24000000054973,

"fromRoute": "24000000000001/24000000012661/24000000039637/24000000049061",

"toRoute": "24000000000001/24000000012661/24000000039637/24000000054973",

"visLinkId": 223646,

"diagramId": 24000000039637,

"routepath": null,

"fromAnchorPointX": 0.5,

"fromAnchorPointY": 0.5,

"toAnchorPointX": 0.5,

"toAnchorPointY": 0.5,

"canDelete": true,

"canMove": true,

"zOrder": -1,

"displayed": true,

"color": "#b9a6a6",

"thickness": 2.0,

"linkStyle": 0,

"htLinkType": "{\"linkType\":null,\"startArrowHead\":null,\"endArrowHead\":null,\"autoArrangement\":true}",

"displayedVisLinkFields2": null,

"table": [

"名称:从：GigabitEthernet0/0/1 到：GigabitEthernet0/0/4"

]

}

]

},

"message": "success"

}

LLDP自动发现

  • 接口描述：传入LLDP设备发现需要的协议和ip以及接口地址，使用LLDP自动发现设备。

  • URL地址：http://ip:port /wapi/v1/universal_forwarding

  • 访问方法:：Post

  • 请求参数：

    Path参数

参数名 类型 示例值 必填 说明
url String /wlpz/discovery/snmp 是 自动发现接口
type String get 是 接口类型
communitylist String public 是 团体字协议
seg String 192.168.100.1-255 是 扫描Ip段
  • 响应示例：

[]

跳转到设备位置

  • 接口描述：传入LLDP扫描结果的ip，根据ip跳转到扫描结果生成的节点的位置。

  • URL地址：http://ip:port /wapi/v1/lldpip/{ip}

  • 访问方法:：Get

  • 请求参数：

    Path参数

参数名 类型 示例值 必填 说明
ip String 192.168.100.1 是 扫描到的ip
  • 响应示例：

[]

发现结果生成设备

  • 接口描述：传入LLDP扫描结果的设备型号、ip、生成到的节点id，将扫描到的设备创建到对应节点。

  • URL地址：http://ip:port /wapi/v1/discovery/creatNode

  • 访问方法:：Post

  • 请求参数：

    Path参数

参数名 类型 示例值 必填 说明
type String huawei 是 设备型号
ip String 192.168.100.1 是 Ip
diagramId Long 24000000000693 是 节点id
  • 响应示例：

[]
