全局搜索类

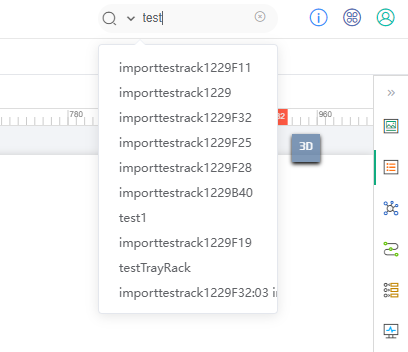

搜索联想提示

  • 接口描述：传入搜索值和搜索模式，返回搜索联想提示值，在nVisual内用作全局搜索栏输入搜索值时提供联想补全。
参数名 类型 示例值 必填 说明
diagramId Long 24000000433079 是 视图id
keywords String test 是 搜索值
scope integer 0 是 搜索模式 0:全查 1:当前页 2:当前页包含子图
  • 响应示例：

[

"importtestrack1229F11",

"importtestrack1229",

"importtestrack1229F32",

"importtestrack1229F25",

"importtestrack1229F28",

"importtestrack1229B40",

"test1",

"testTrayRack",

"importtestrack1229F19",

"importtestrack1229F32:03 \nimporttestrack1229F25:03",

"importtestrack1229F25:01 \nimporttestrack1229F32:01",

"importtestrack1229F11:01 \nimporttestrack1229F19:01",

"importtestrack1229F25:04 \nimporttestrack1229F32:04",

"importtestrack1229F19:04 \nimporttestrack1229F19:03"

]

全局搜索

  • 接口描述：传入搜索值、视图id和搜索模式，返回搜索结果。

  • URL地址：http://ip:port /wapi/v1/search

  • 访问方法:：Post

  • 请求参数：

    Body参数

参数名 类型 示例值 必填 说明
diagramId Long 24000000433079 是 视图id
keywords String test1 是 搜索值
exactMatch Boolean false 否 是否精确完全匹配
scope integer 0 是 搜索模式 0:全查 1:当前页 2:当前页包含子图 3：对象关系搜索
allProperties List<String> ["ip"] 否 列选择器字段名
  • 回参
参数名 类型 说明
result_list List<Map> 搜索列表结果
vis_links List<Map> 搜索列表内link对象在当前视图的显示
vis_nodes List<Map> 搜索列表内node对象在当前视图的显示
blinkid Long 跳转闪烁对象id
diagramid Long 跳转视图id
id Long 对象本身id
name String 对象本身名称
typename String 对象本身型号
propertyName String 属性搜索时搜索结果对应属性名称
propertyValue String 属性搜索时搜索结果对应属性值
relation String 关系搜索时关系名称
  • 响应示例：

{

"code": 200,

"data": {

"vis_nodes": [

{

"id": 749006658708,

"nodeId": 24749000621215,

"diagramId": 24000000087173,

"x": 12954400.619319776,

"y": 4839911.695664589,

"z": null,

"width": 20,

"height": 20,

"imageOverride": null,

"keepAspectRatio": false,

"angle": 0,

"canMove": true,

"canResize": true,

"canRotate": true,

"canDelete": true,

"zOrder": 0,

"displayed": true,

"typeId": 26000000132991,

"name": "熔纤包-red1 144 ",

"parentId": 24000000087173,

"slotId": null,

"masterId": null,

"route": "24000000000001/24000000087169/24000000087173/24749000621215",

"mapZoom": 18,

"nodeTypeName": "熔纤包-red1 144 ",

"nodeTypeImage": "lo8cq6ll.svg",

"nodeTypeImage2": "w8kuzczm.svg",

"nodeTypeTypeGroup": 7,

"nodeTypeHeight": 200,

"nodeTypeWidth": 200,

"mountedNodesData": null,

"shapes": null,

"diagramSublink": null,

"diagramSublinks": null,

"unitsHeight": 4,

"hasEmbeddedFile": false,

"clusterSize": null,

"groupId": null,

"threeDBackground": null,

"depth": 1,

"cluster": null,

"master": true,

"blocked": false

},

{

"id": 749006658853,

"nodeId": 24749000621216,

"diagramId": 24000000087173,

"x": 12954320.599305792,

"y": 4839638.194422758,

"z": null,

"width": 20,

"height": 20,

"imageOverride": null,

"keepAspectRatio": false,

"angle": 0,

"canMove": true,

"canResize": true,

"canRotate": true,

"canDelete": true,

"zOrder": 0,

"displayed": true,

"typeId": 26000000132991,

"name": "熔纤包-red1 144 ",

"parentId": 24000000087173,

"slotId": null,

"masterId": null,

"route": "24000000000001/24000000087169/24000000087173/24749000621216",

"mapZoom": 18,

"nodeTypeName": "熔纤包-red1 144 ",

"nodeTypeImage": "lo8cq6ll.svg",

"nodeTypeImage2": "w8kuzczm.svg",

"nodeTypeTypeGroup": 7,

"nodeTypeHeight": 200,

"nodeTypeWidth": 200,

"mountedNodesData": null,

"shapes": null,

"diagramSublink": null,

"diagramSublinks": null,

"unitsHeight": 4,

"hasEmbeddedFile": false,

"clusterSize": null,

"groupId": null,

"threeDBackground": null,

"depth": 1,

"cluster": null,

"master": true,

"blocked": false

}

],

"vis_links": [

{

"linkId": 25416000449645,

"typeId": 27000000000112,

"name": "lyfmapsearchtest",

"fromNode": 24749000621215,

"toNode": 24749000621216,

"fromRoute": "24000000000001/24000000087169/24000000087173/24749000621215",

"toRoute": "24000000000001/24000000087169/24000000087173/24749000621216",

"visLinkId": 416001734350,

"diagramId": 24000000087173,

"routepath": "{\"edge.expanded\":false,\"edge.ripple.elevation\":-20,\"edge.ripple.size\":1,\"edge.ripple.both\":true}",

"fromAnchorPointX": 0.5,

"fromAnchorPointY": 0.5,

"toAnchorPointX": 0.5,

"toAnchorPointY": 0.5,

"canDelete": true,

"canMove": true,

"zOrder": -1,

"displayed": true,

"color": "#ffde00",

"thickness": 0.6,

"linkStyle": 0,

"htLinkType": null,

"mapZoom": null

}

],

"result_list": [

{

"id": 25416000449645,

"name": "lyfmapsearchtest",

"typename": "OS2-24-ID",

"diagramid": 24000000087173,

"blinkid": 25416000449645,

"propertyName": "名称",

"propertyValue": "lyfmapsearchtest"

}

]

}

}

移动端全局搜索

  • 接口描述：传入搜索值、视图id和搜索模式，返回搜索结果，用作移动端app的全局搜索，比上个接口多返回一个对象图片和对象层级路径。

  • URL地址：http://ip:port /wapi/v1/search/app

  • 访问方法:：Post

  • 请求参数：

    Body参数

参数名 类型 示例值 必填 说明
diagramId Long 24000000433079 是 视图id
keywords String test1 是 搜索值
exactMatch Boolean false 是 是否精确完全匹配
scope integer 0 是 搜索模式 0:全查 1:当前页 2:当前页包含子图
  • 响应示例：

{

"code": 200,

"data": [

{

"id": 24000000430213,

"diagramId": 24000000173155,

"name": "test1",

"type": "Tray_Node",

"propertyName": "名称",

"propertyValue": "test1",

"fromNode": null,

"toNode": null,

"nodeSelf": {

"mapZoom": 3.0,

"x": 45.181130974826694,

"y": 96.60170931224772

},

"image": "o70ux8tu.png",

"position": "顶层>数据中心11>test1",

"node": true

}

]

}

最近修改: 2025-02-28
